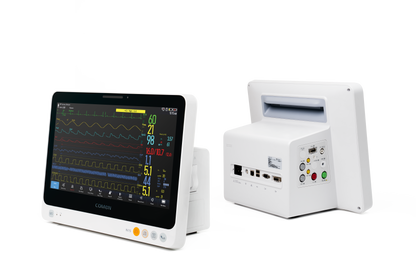

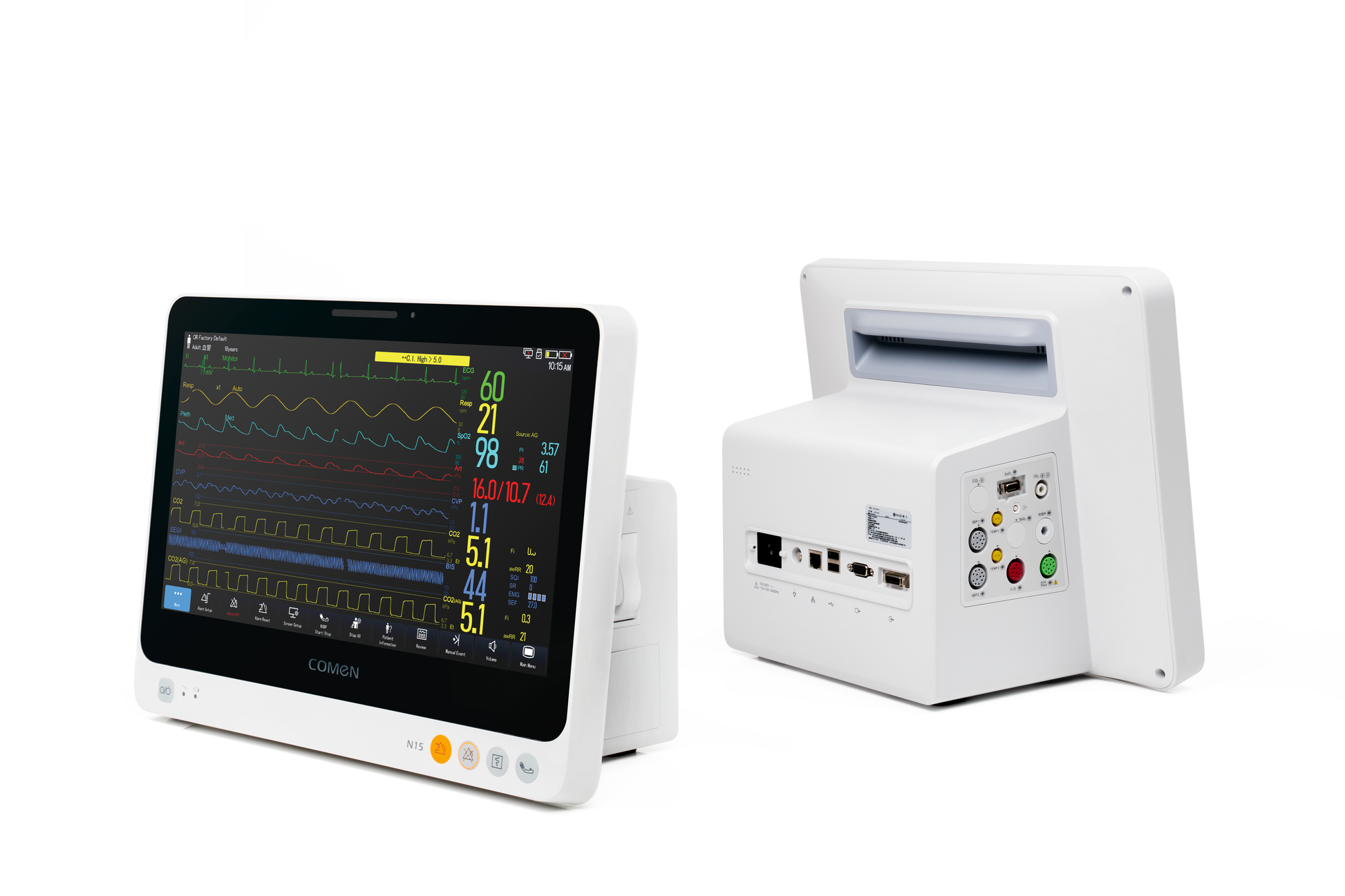

N15 Pre-configured Patient Monitor

Inspire Simple and Intuitive Monitoring

Revolutionary Capacitive Touchscreen

-          Sensitivity and Clarity at Your Fingertips

Experience a new dimension of touch interaction with our capacitive touchscreen technology. The high resolution ensures every detail is presented vividly, delivering a truly immersive viewing experience that leaves nothing to the imagination.

-          Intuitive Interface Mastery

Witness the power of multi-waveform display like never before. The N Series supports the simultaneous presentation of 8 to 12 waveforms, a testament to its advanced capabilities. Beyond its numerical prowess, our monitors offer a range of interface options to cater to diverse clinical needs. From respiratory oxygen to trend review interfaces, and even dedicated single oxygen parameter views, the N Series adapts effortlessly to your requirements.

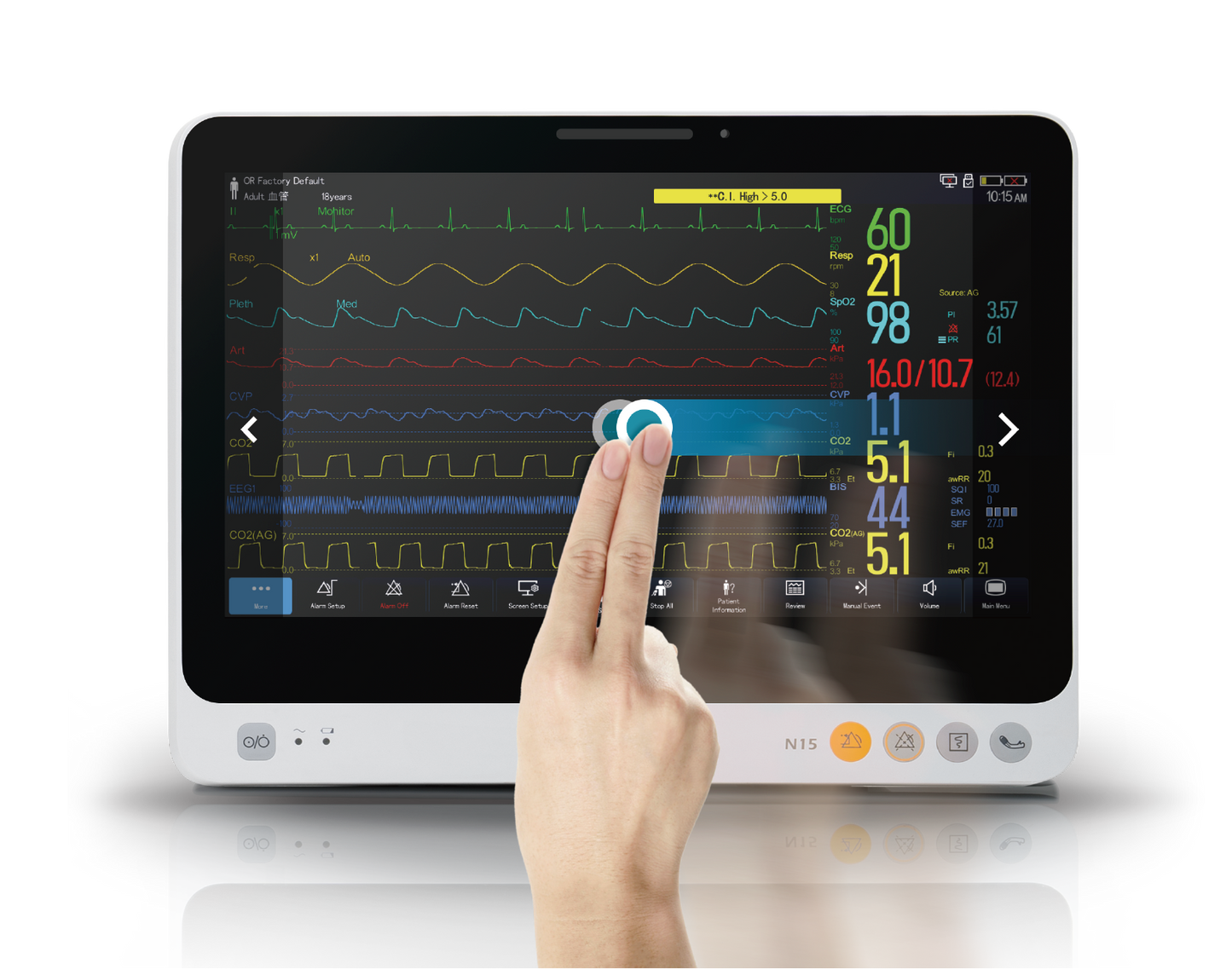

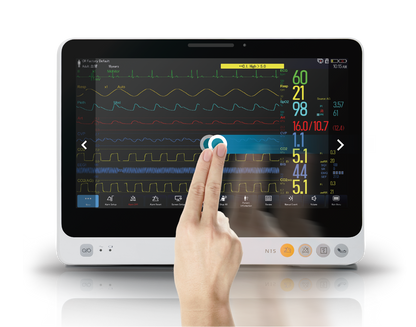

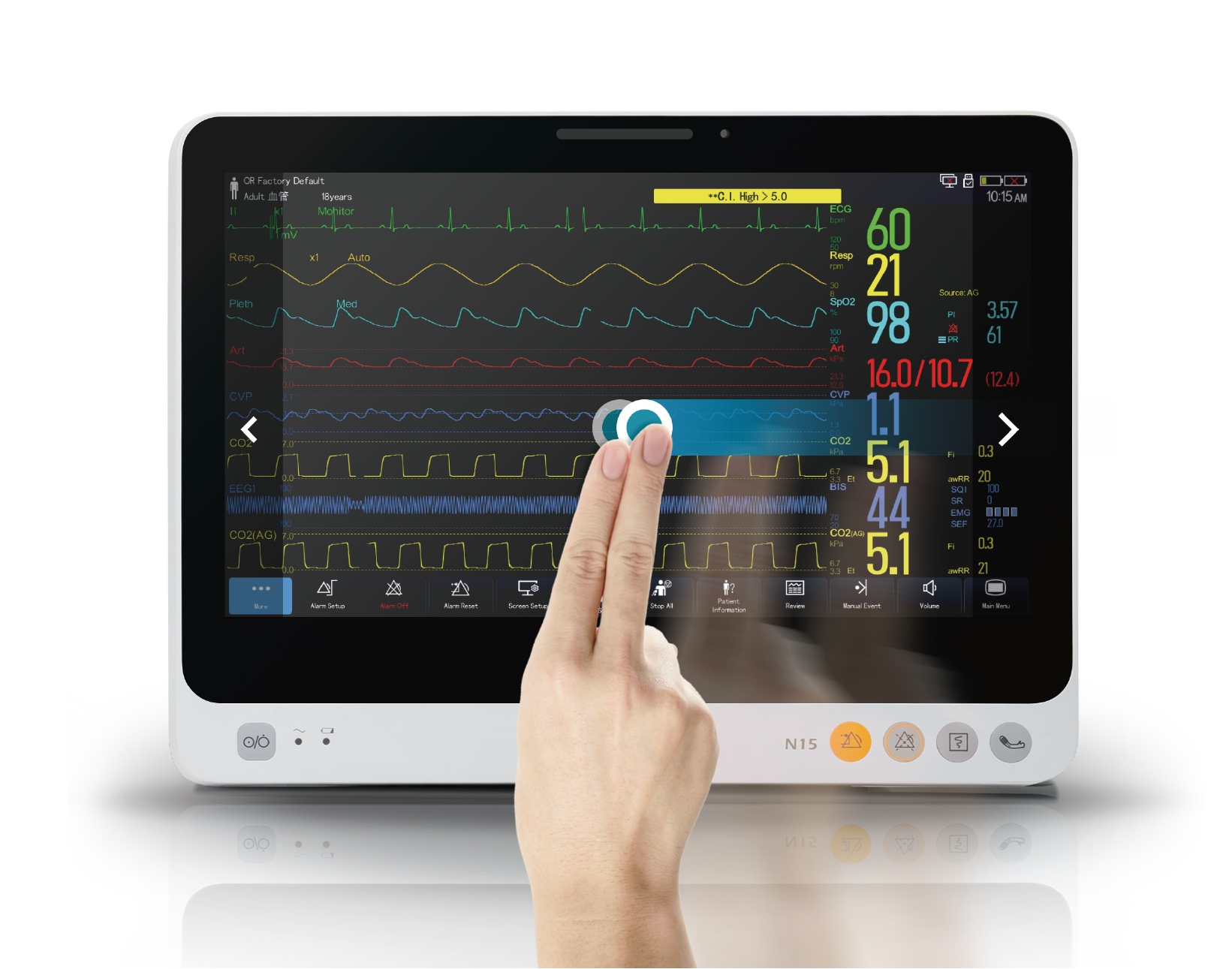

-          N Series Monitor: Touch Control Redefined

Multi-gesture control for effortless interaction with N Series. Slide with two fingers to seamlessly navigate between screens, making your operation smooth and enjoyable. And for selection, a gentle tap with one finger confirms your choice. With N Series Monitor, technology has become more user-friendly than ever.



Designed With High-quality Clinical Algorithms

Experience SpO2 measurement like never before with our N Series. Utilizing SIQ technology, our monitors provide a quantifiable indicator of SpO2 measurement. What sets us apart is our low perfusion index algorithm, ensuring precise SpO2 tracking even under conditions of low saturation.



The N Series ECG functionality is a testament to versatility and innovation. Choose from 3/5/6/12 lead options, granting you the flexibility to tailor your monitoring approach. With support for 27 types of arrhythmia analysis, ST analysis, QT, QTc, ∆QTc analysis, and HRV analysis, our monitors empower you to gain comprehensive insights into cardiac performance. The intelligent lead-off detection feature safeguards ECG lead stability, ensuring consistent and reliable monitoring.



And the new NIBP algorithm delivers rapid results without compromising accuracy. The enhanced resistance to motion interference makes it a preferred choice, especially in neonatal measurements. Choose from manual, automatic (cyclic), sequential, and continuous measurement modes, adapting to your patient's unique needs.



Emergency Transportation: The N10 Monitor for Ambulance Use

-          Lightweight and Rugged Design

The N10 Monitor has been meticulously crafted with a focus on portability and durability. Weighing a mere 3.65 kg, it offers exceptional mobility without compromising performance. Tested to meet EN1789 ambulance standards, subjected to 0.75m drop tests, and verified for water and dust resistance, the N10 is a robust companion that can withstand the rigors of emergency transportation

-          Efficient Charging for Uninterrupted Operations

Acknowledging the time-sensitive nature of emergencies, the N10 Monitor is equipped with a 12-28V DC charging interface. This feature allows for rapid and convenient charging while on the move, ensuring the monitor is always ready for action. Seamless charging compatibility enhances the operational efficiency of emergency medical teams.



Empowering Clinical Excellence

-          Early Warning Score (EWS): Early Warning Score helps to recognize patients whose physiological conditions are at risk of deterioration.

-          SepsisSight: Provides a checklist to help clinicians screen, diagnose and treat septic patients according to the SSC guidelines.

-          GCS: Glasgow Coma Scale. Records the consciousness level of patients for initial as well as subsequent assessments.

-          24 hours ECG Summary: Including Heart rate statistics, Statistics of arrhythmia events, and QT/QTc. measurement value statistics, ST maximum and minimum statistics for each lead, Pace statistics, and Typical ECG waveform.



Excellent Data Storage: Empowering Clinical Insights

-          Tabular and graphic trends up to 2400 hours

-          12-lead ECG analysis 20 groups

-          Alarm events review 2500 events

-          Full disclosure waveform review 48 hours

-          ST review 120 hours

-          NIBP measurement up to 3500 groups

-          ARR recall 49 hours

-          OxyCRG events 400 events



Seamless Data Integration and Connectivity

The N Series Monitors possess a robust information transmission capability that empowers you to connect effortlessly with central monitoring systems. The monitors are equipped to transmit real time data, waveforms, and alarms to the central monitoring hub. And through advanced connectivity protocols, including the widely recognized HL7 protocol, all the information can direct and indirect connections with HIS.
