K1 Emergency and Transport Patient Monitor

Diverse Solutions, One-Stop Care

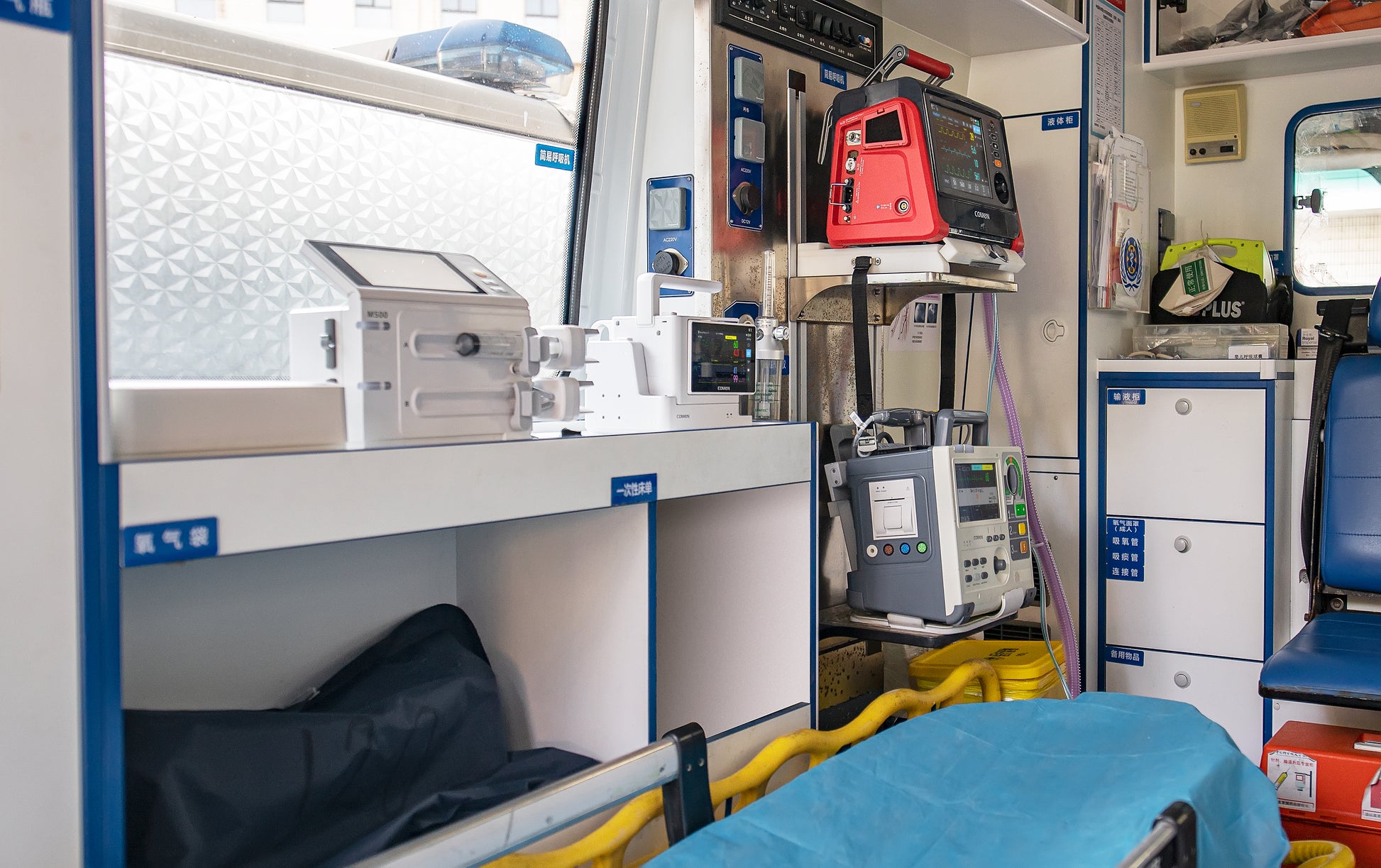

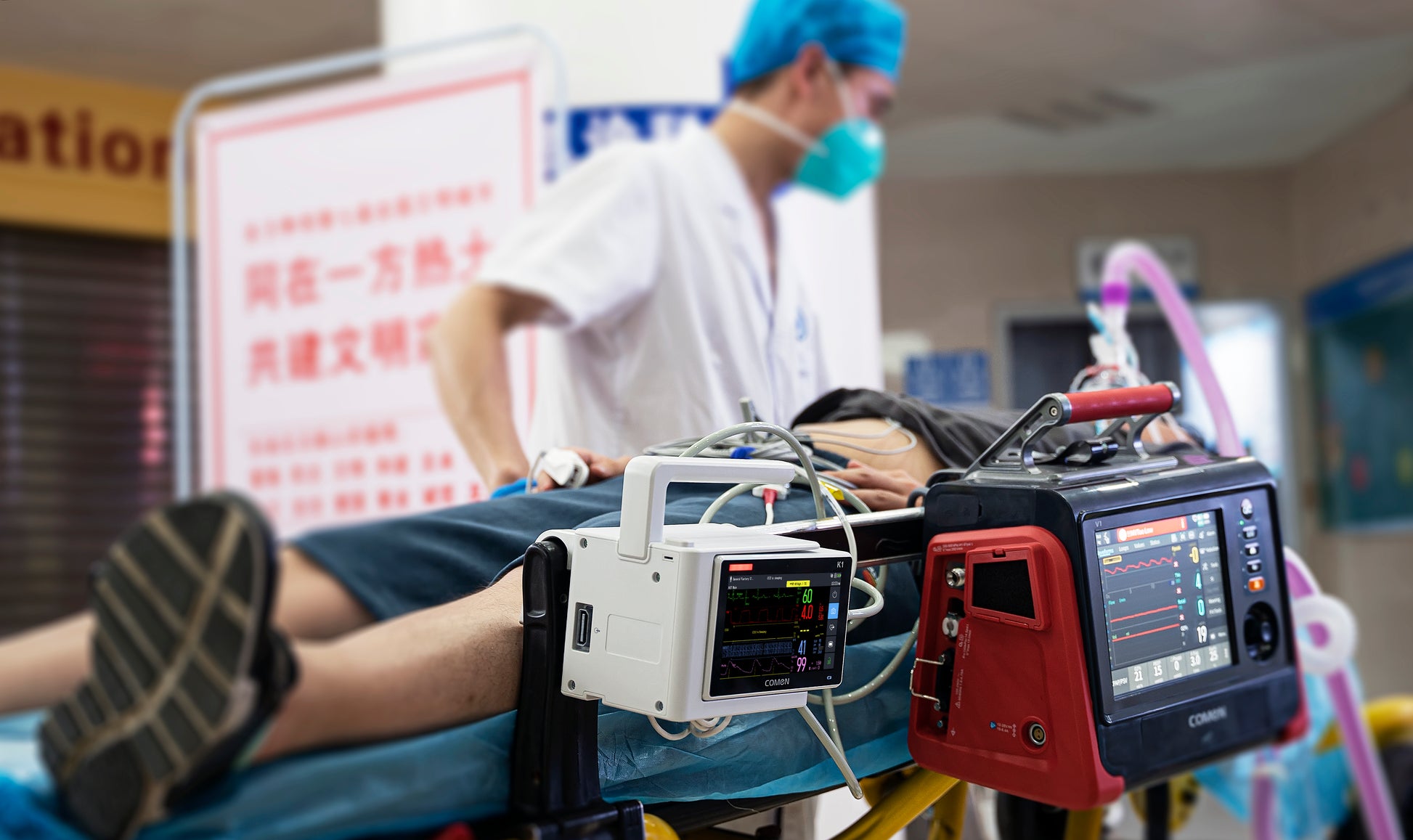

-            Reliable prehospital and in-hospital care during transport

K1 satisfies out-of-hospital transport standards including EN1789, in Emergency Department, it can be used as a specialized road ambulance transport patient monitor.

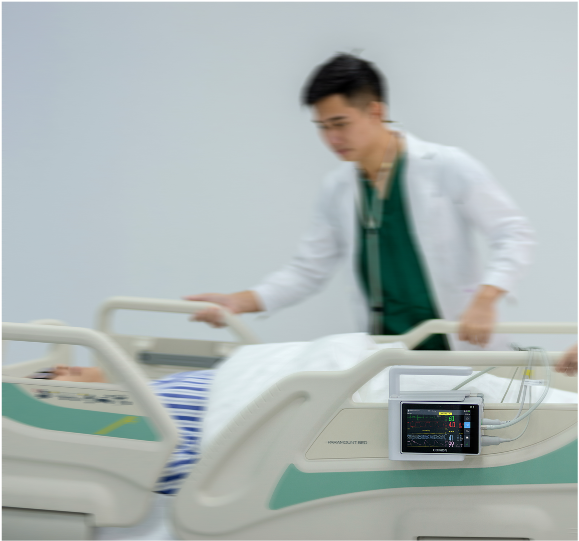

Equipped with Module Rack, K1 is convenient during in-hospital transport. You can continue to monitor the patient even on the move.

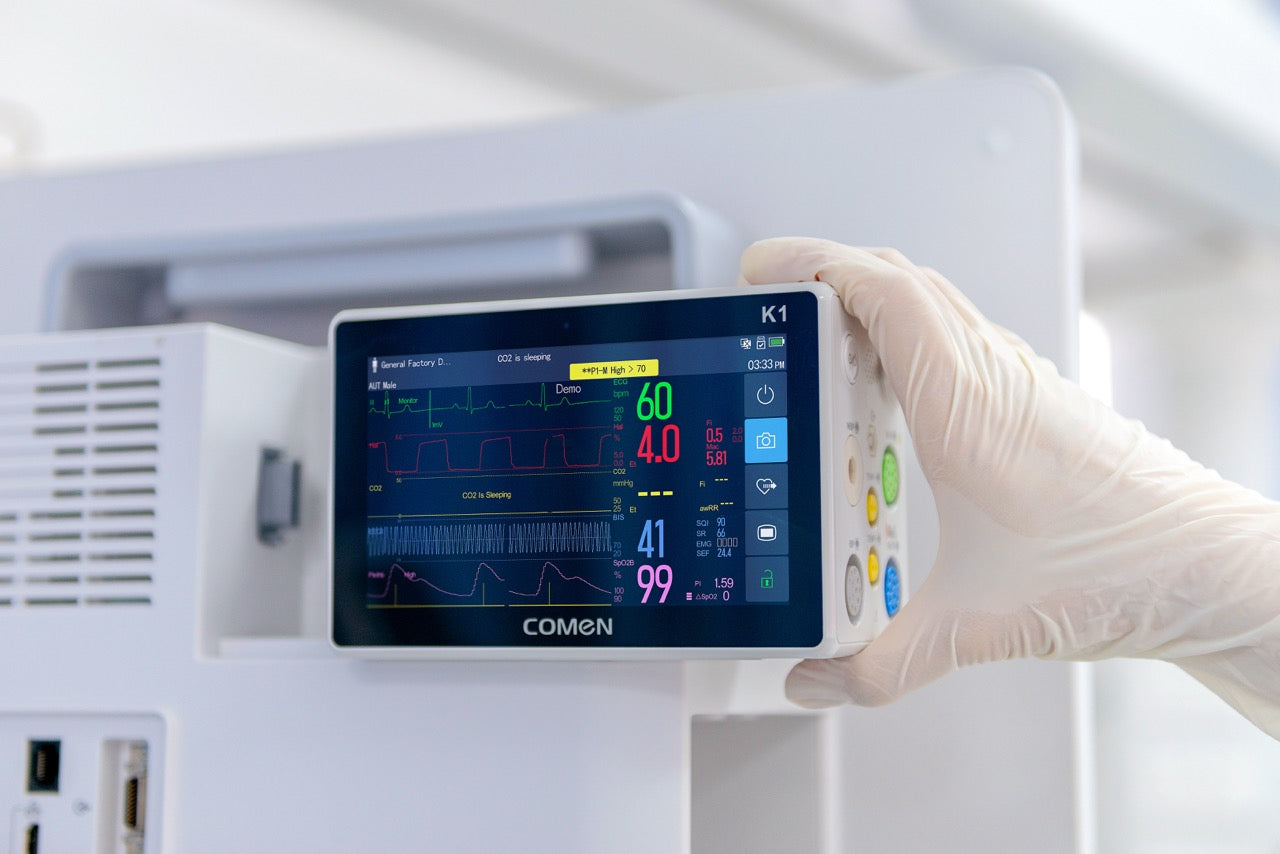

-            Seamless access to patient data as a multi-parameter module

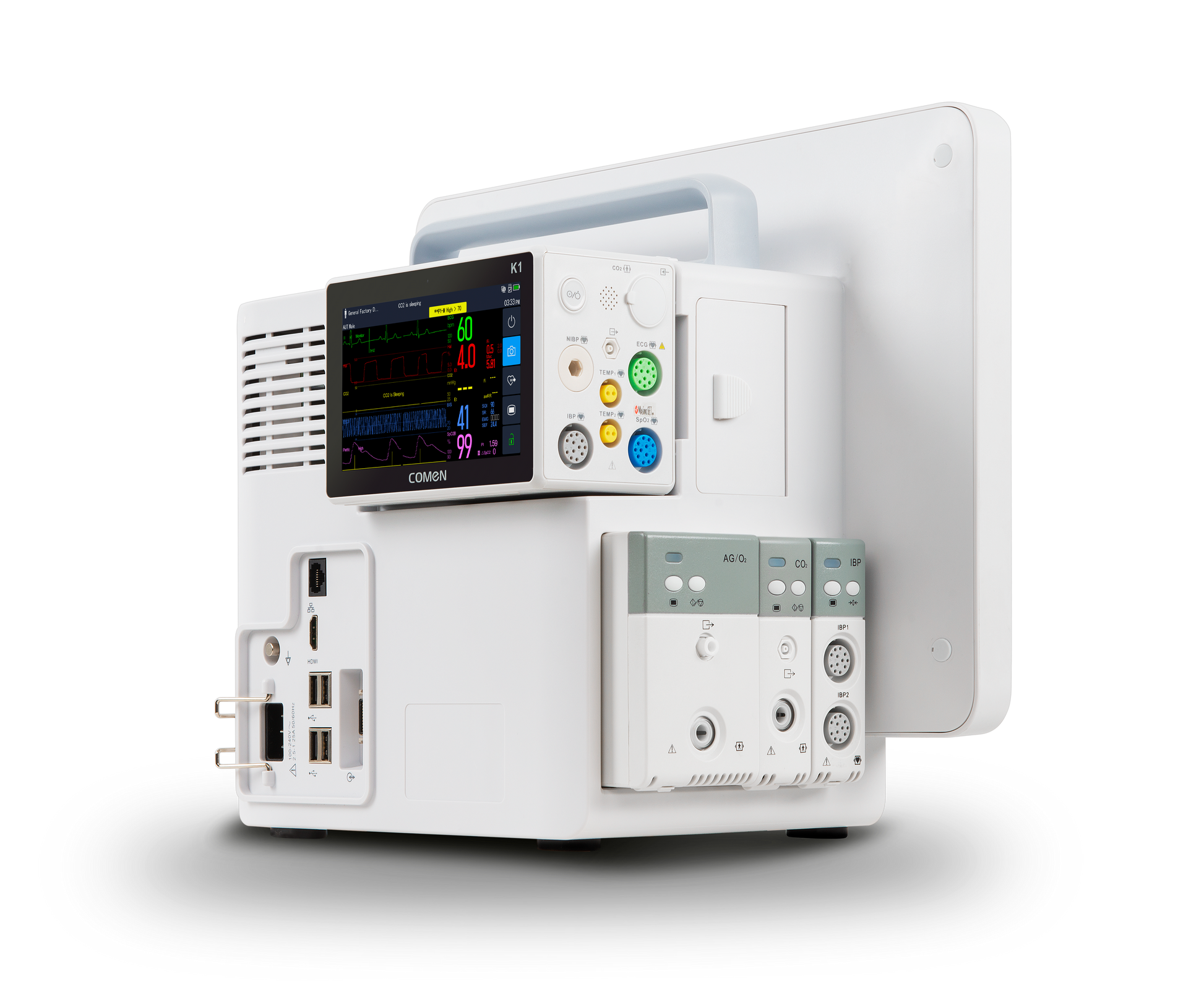

K1 is a part of K series patient monitor family, in ICU or OR, it can be used as a plug-and-play multi-parameter module. K1 directly connects to K series modular patient monitor to transfer patient data. This solution provides advanced measurements for high-acuity patients.

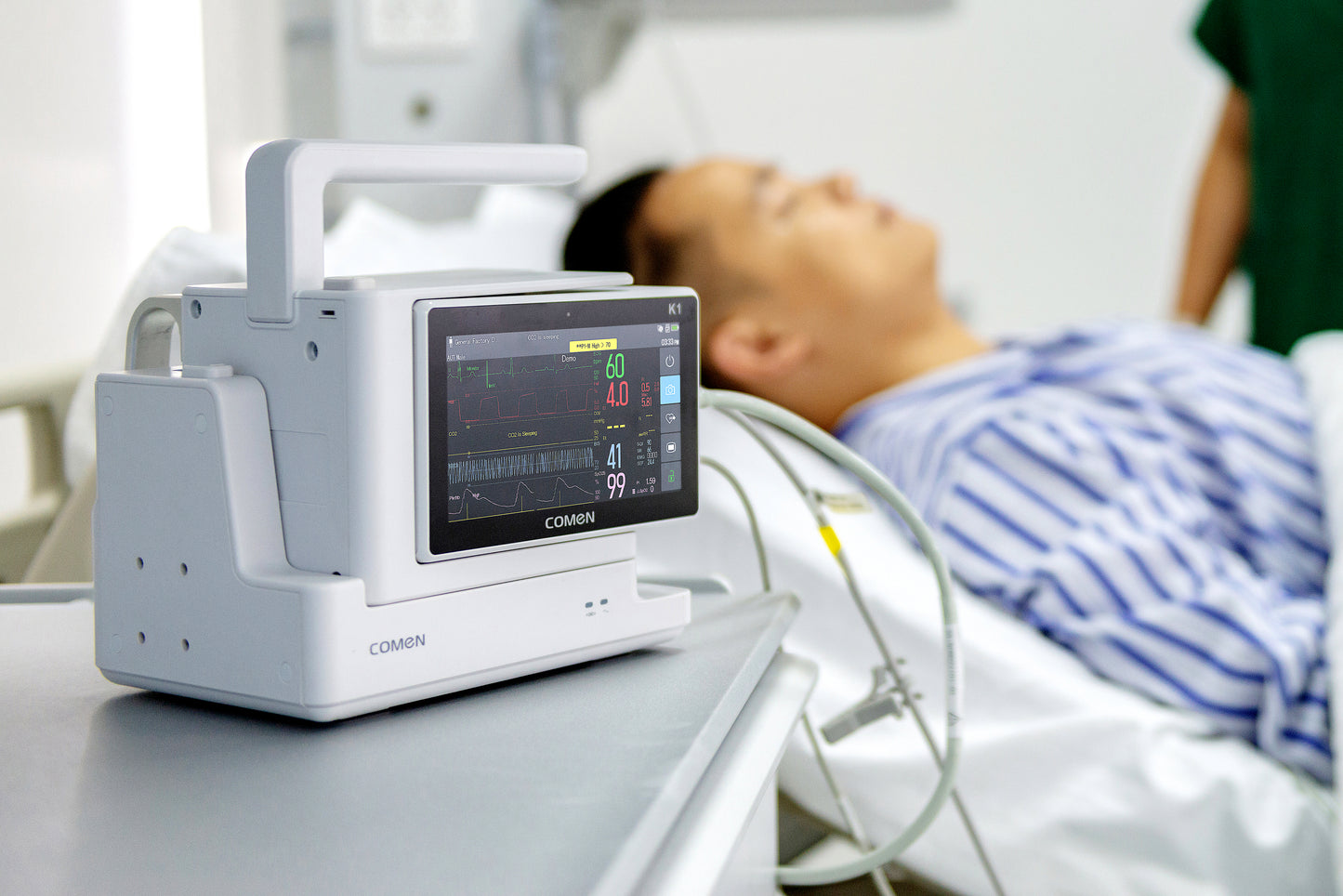

-            Extensible, independent bedside monitoring. Just dock it.

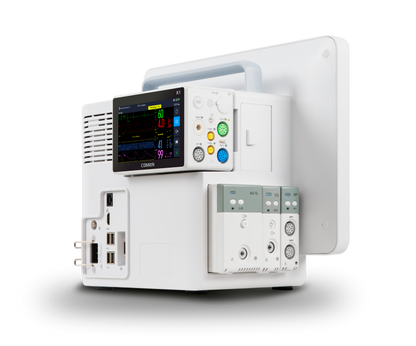

Equipped with Module Rack and Docking Station, K1 turns to a compact and flexible bedside patient monitor. K1 can be connected to an external display through Docking Station, which makes it easy to view your patient’s vital signs and remotely perform operations on a second, large display. There are 2 types of external display: Mirror-screen display and Independent-screen display.

It is small yet strong, and intuitive.

K1 insists on user-oriented design. K1 has the features such as elegant appearance, light and handy structure, easy-to-use interface, simple operation and stable quality, making clinicians feel at ease while using it.

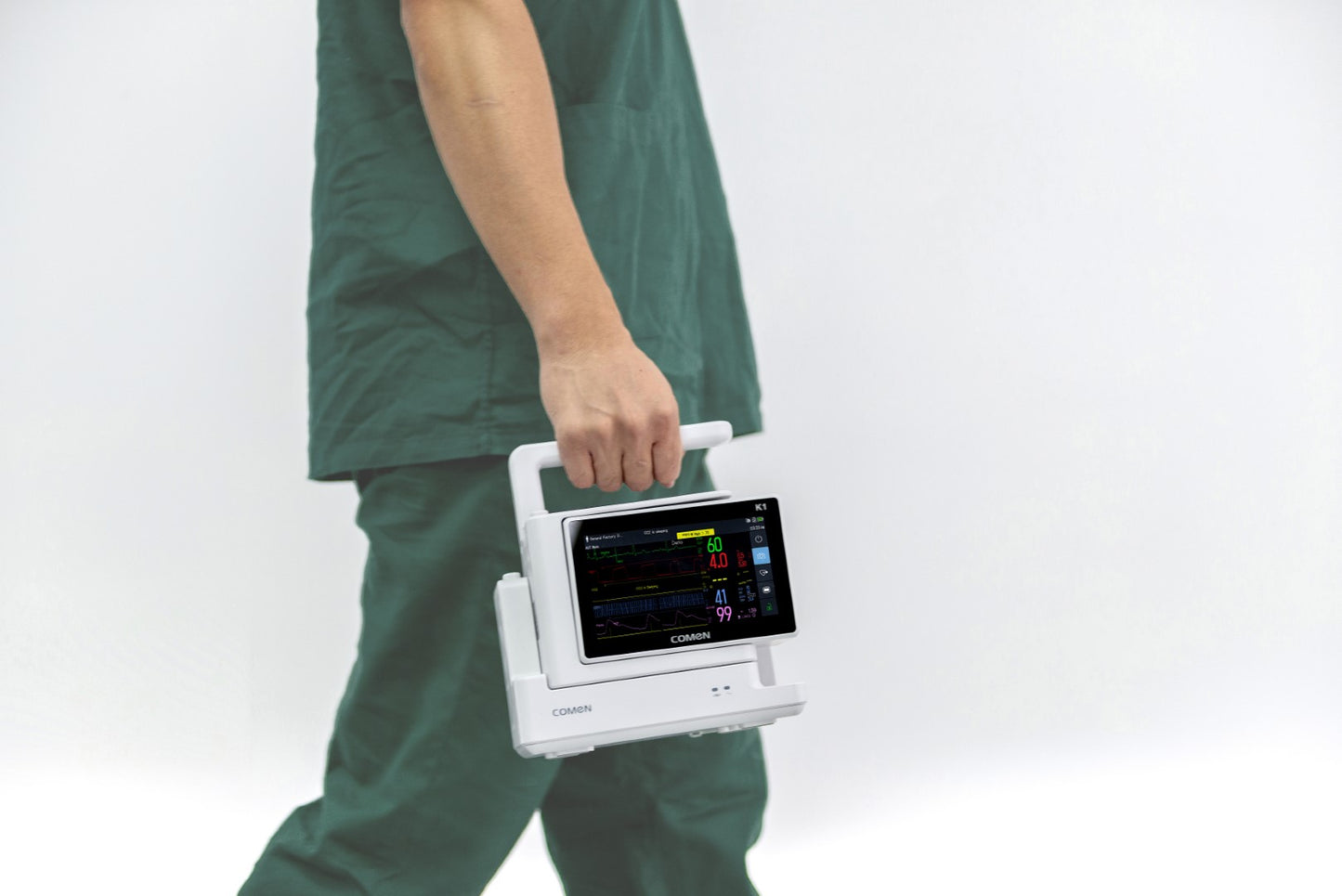

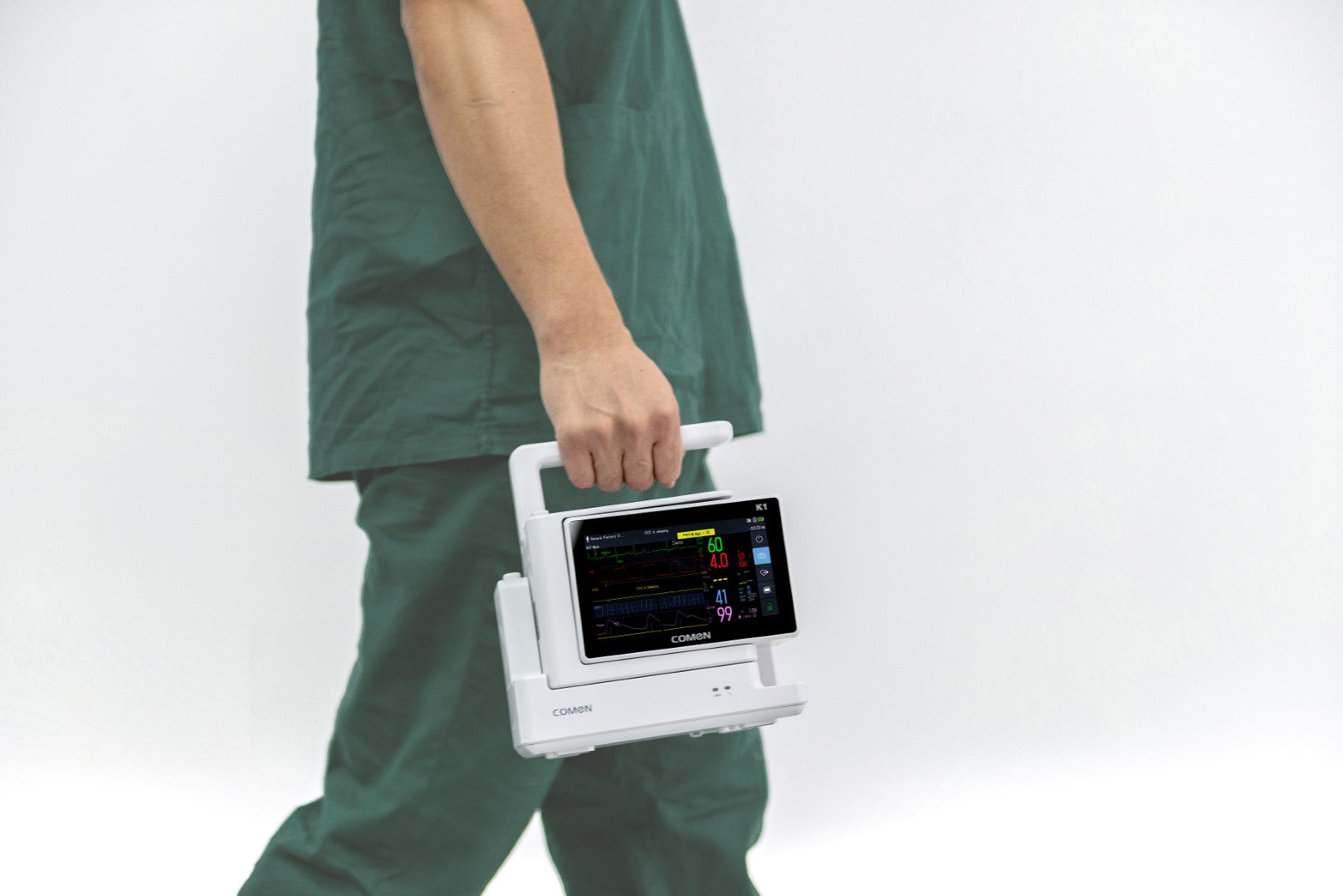

-            Compact and Portable

K1 adopts compact and durable design, which strengthens its stability. It’s small and light enough to carry easily to wherever.

·       Compact size 148.4×79.2×96.5mm

·       Light weight 2.5kg

·       Fixed handle and clip of Module Rack, comfortable to carry

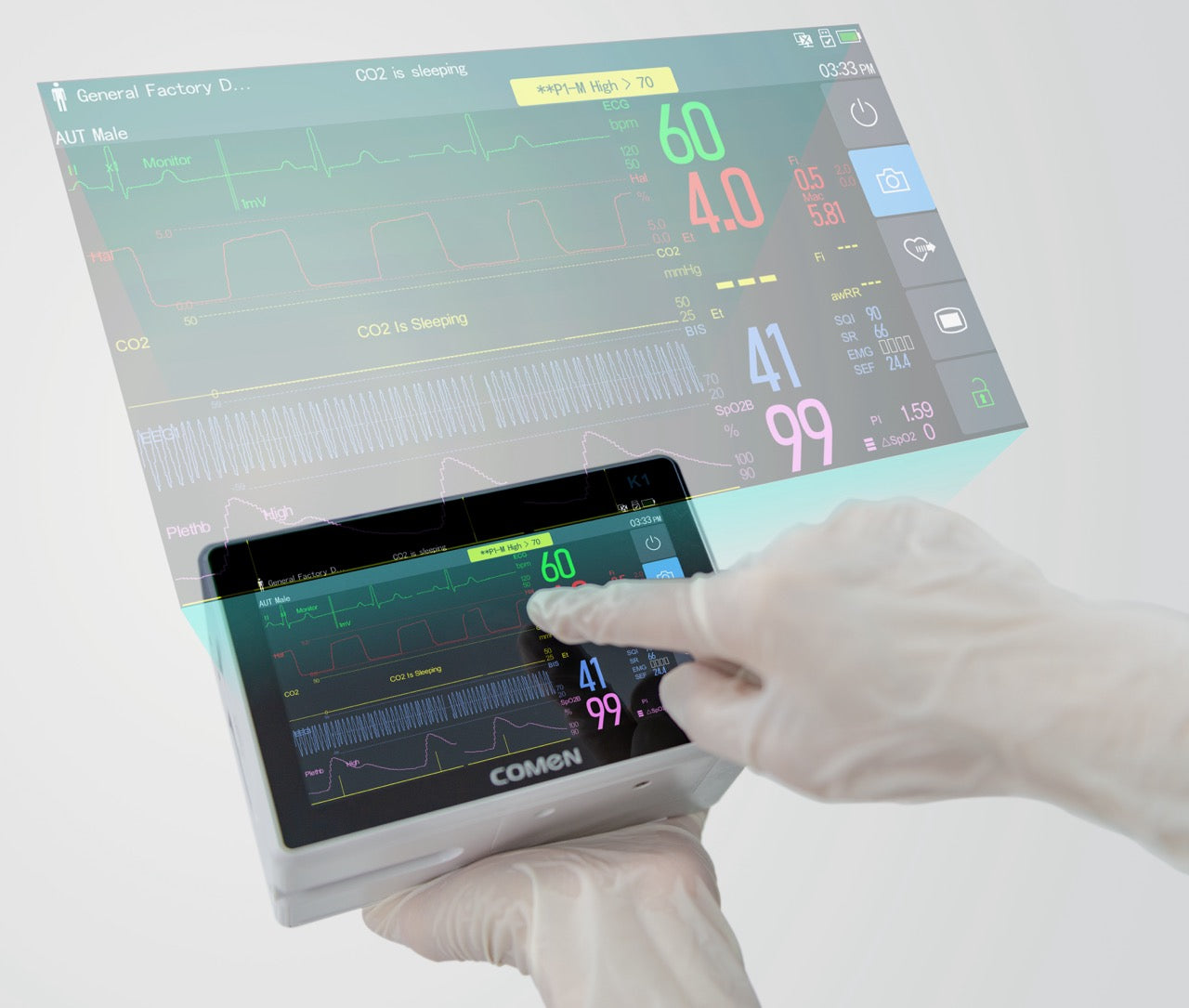

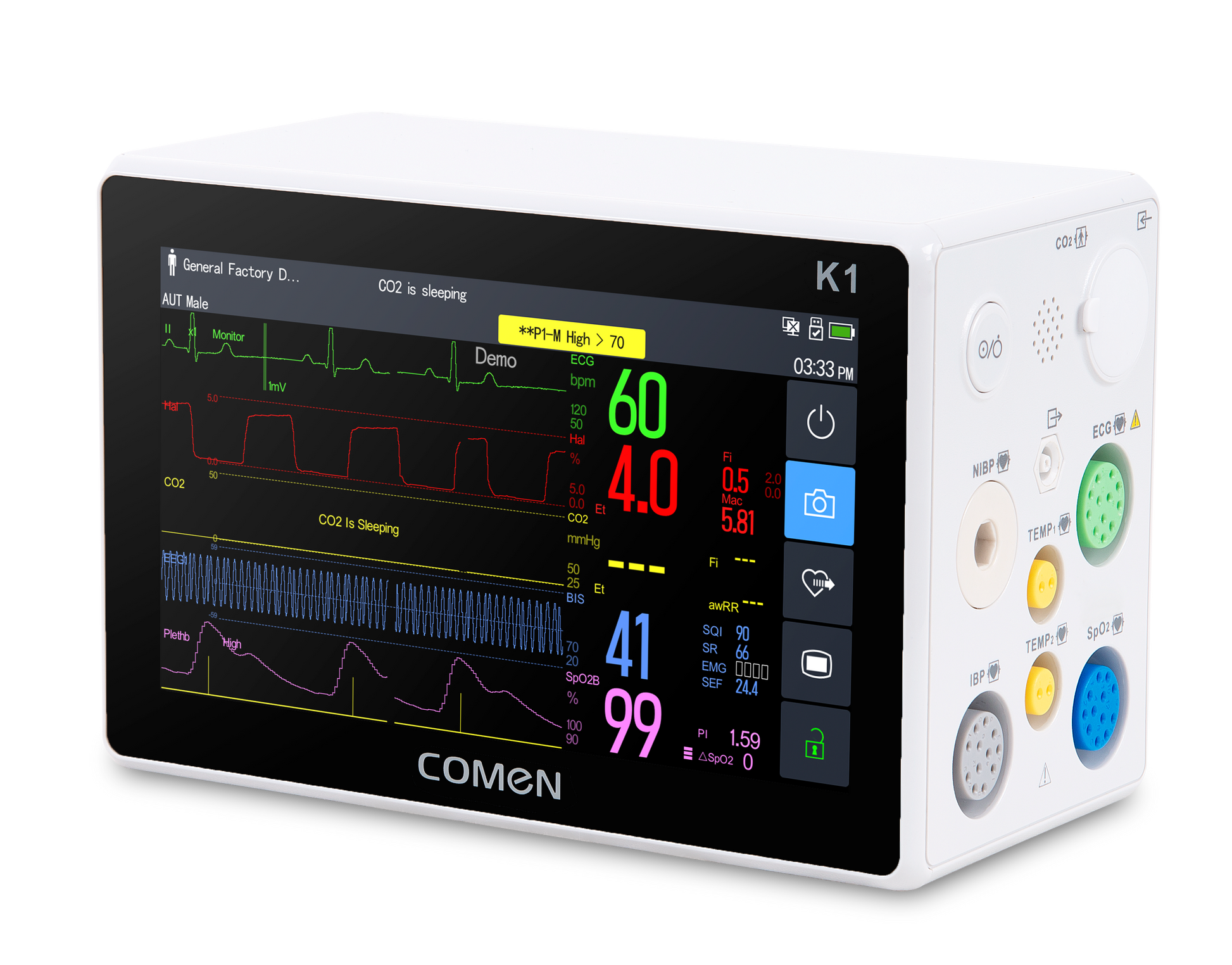

-            Intuitive and Clear

It’s fast and simple to operate K1 through a medical-grade touchscreen and intuitive views.

·       5.5-inch capacitive touchscreen

·       1280×720 high resolution

·       Support multi-touch operation, easy to learn and operate

-            Durable and Reliable

·       IP44 Ingress Protection

·       1.2m Drops Endurance

·       10-hour Battery Life

Comprehensive diagnosis, improving efficiency

-            Efficient, Flexible Monitoring

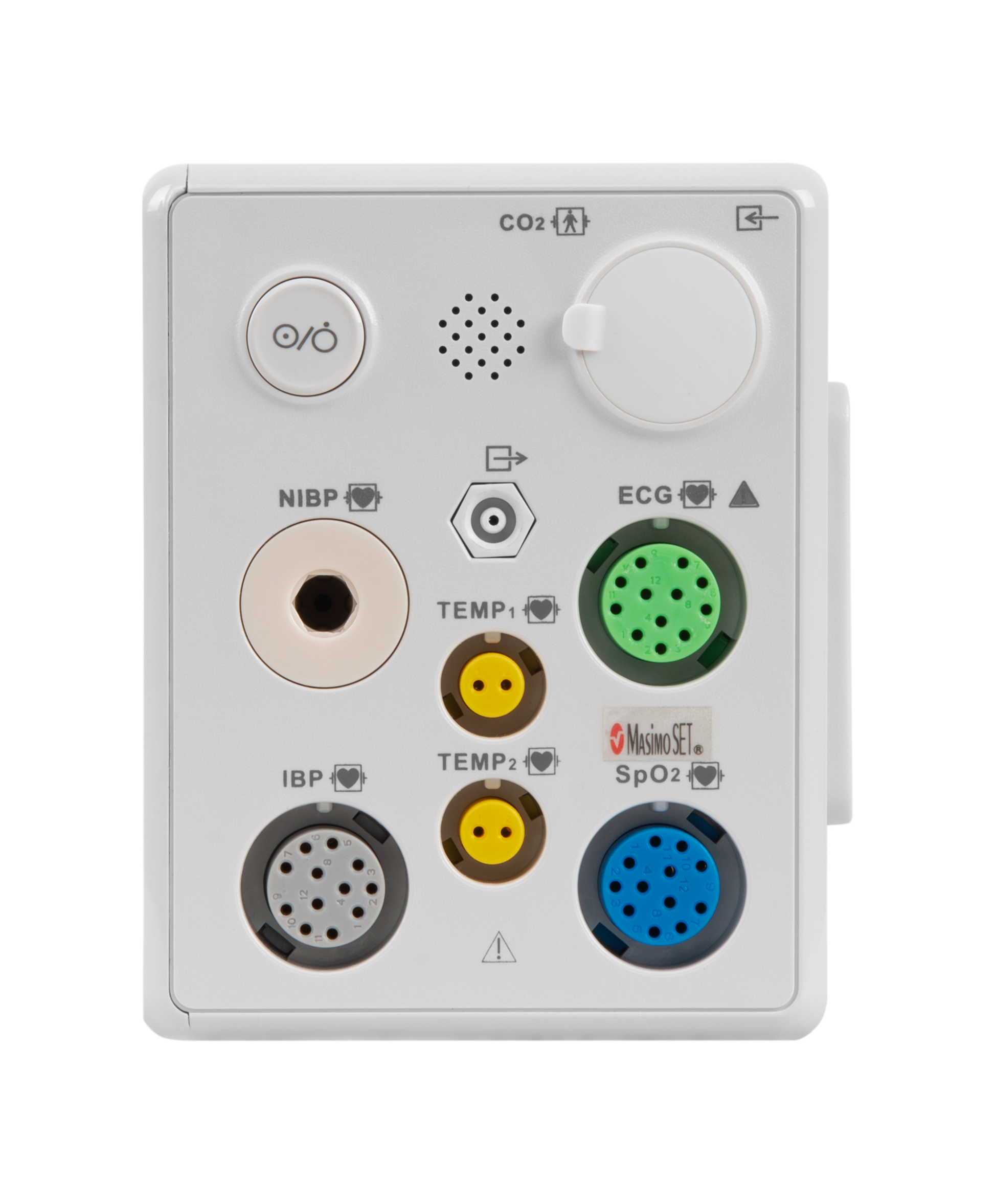

K1 delivers basis measurements including 3/5/6/12-lead ECG with ST and QT analysis, respiration, NIBP, SpO2, temperature, built-in side stream EtCO2 and dual IBP.

With Module Rack, K1 supports one extended module and provides advanced measurements including mainstream/side stream EtCO2, dual IBP, invasive cardiac output(C.O.), BIS, AG, NMT, RM and Rainbow SpO2. Besides, K1 specially supports apnea wake-up function for infants.

Providing accurate and flexible measurements, K1 ensures comprehensive patient monitoring across all levels of hospital care during transport or at the bedside.

-            More Information, Make informed diagnosis

K1 has strong data storage and information management. More information is important for clinicians to make an informed diagnosis.

When K1 is connected to the external display, it can offer Clinical Assistant Application (CAA), including Early Warning Score (EWS), Glasgow Coma Scale (GCS), SpesisSight and ECG 24H Summary, which help clinicians make decisions with confidence
