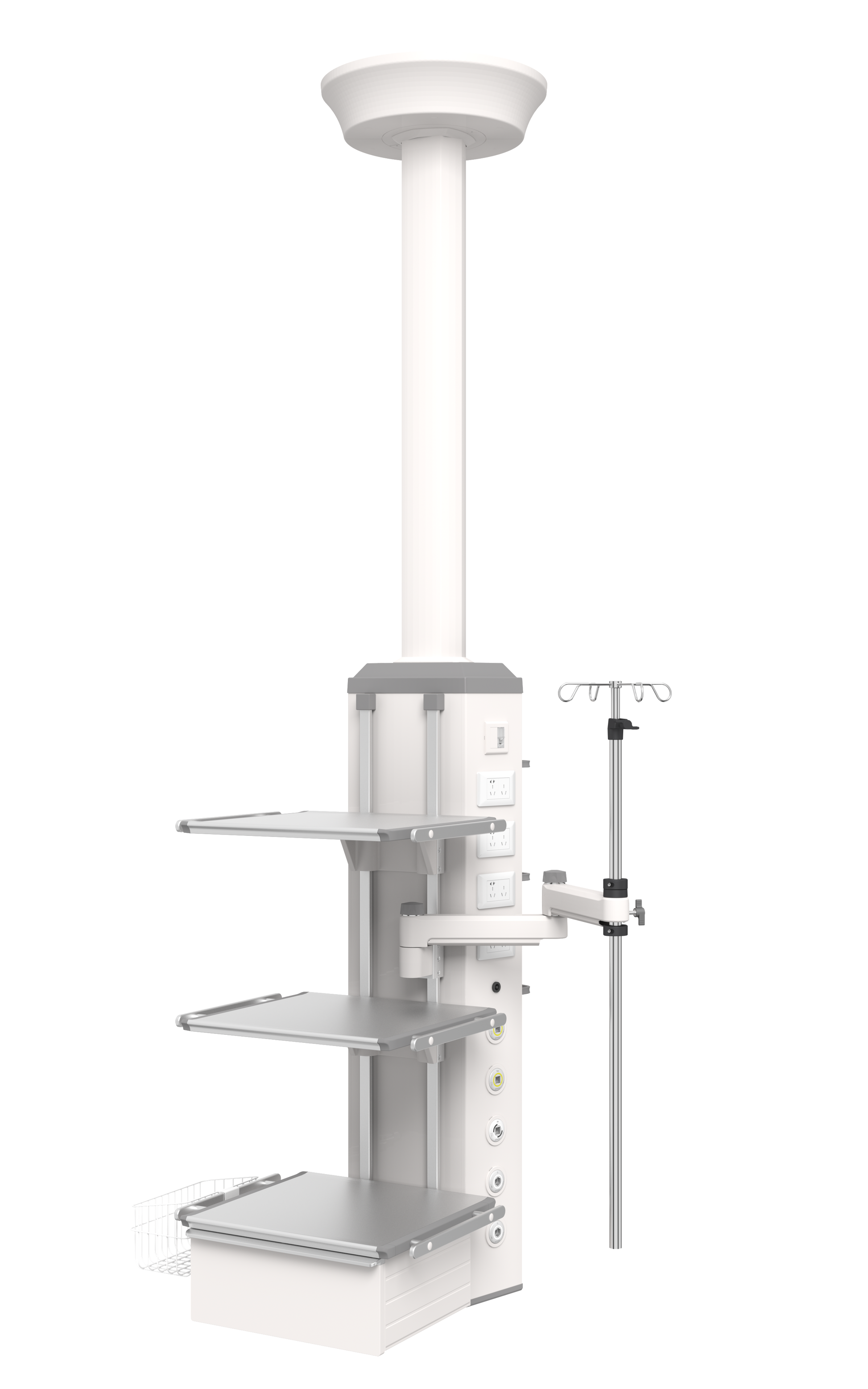

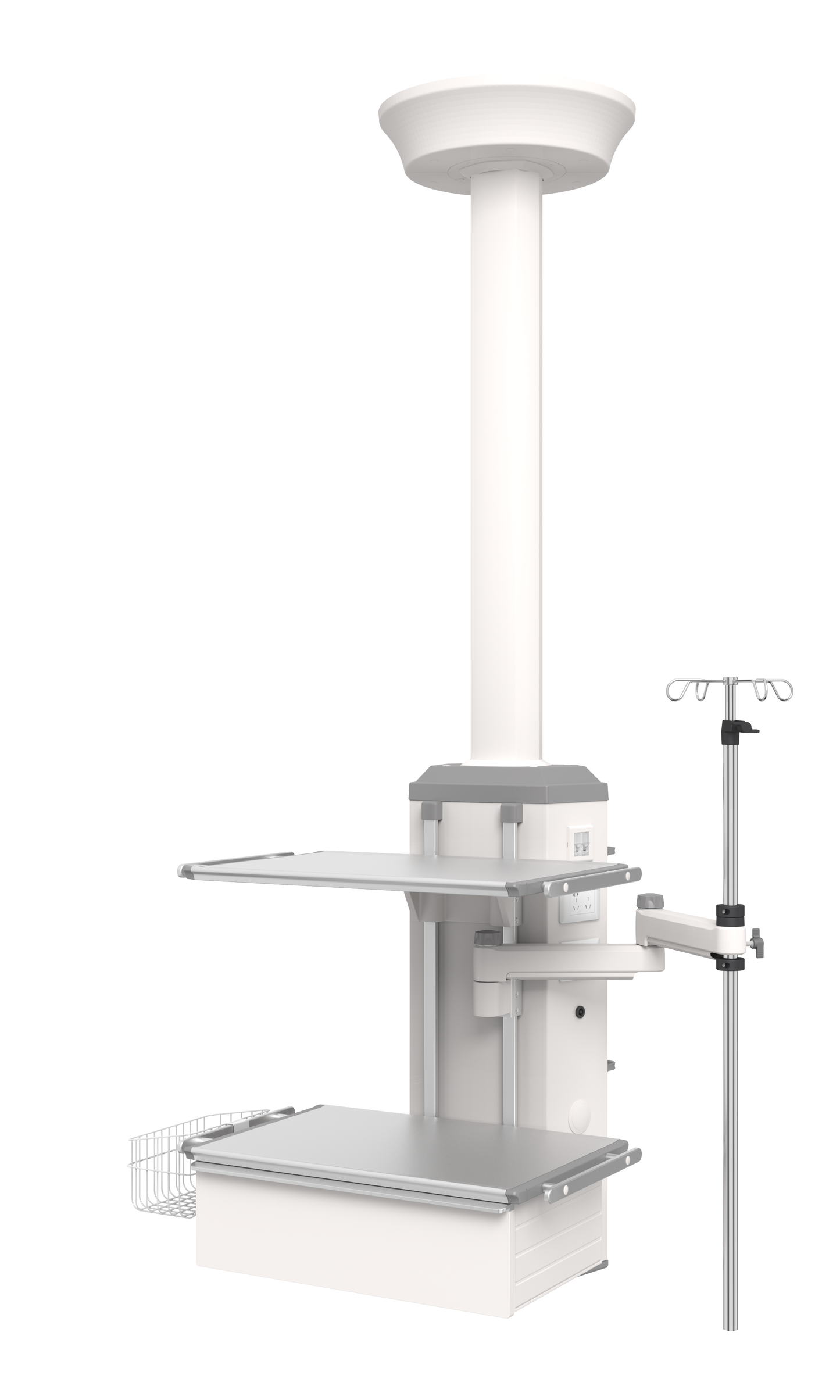

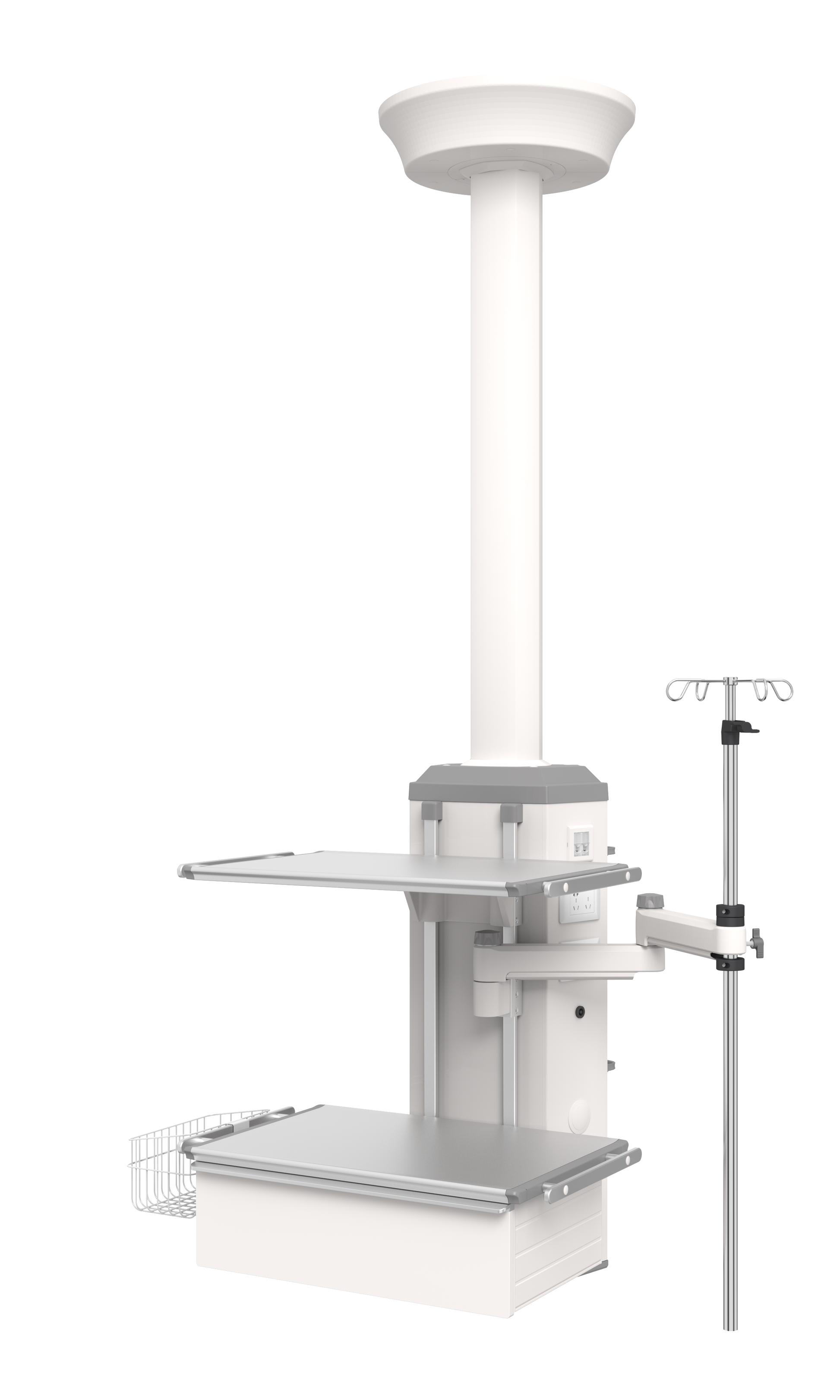

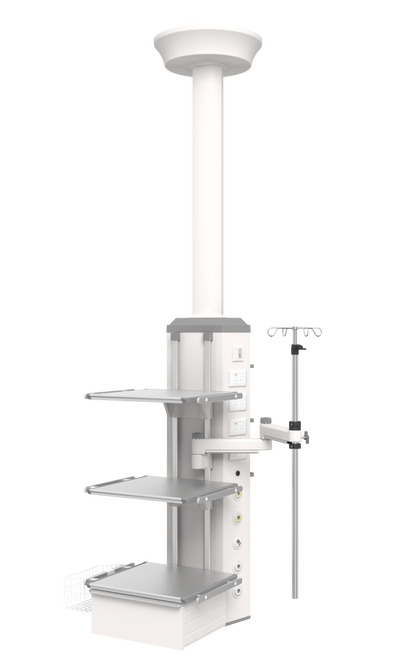

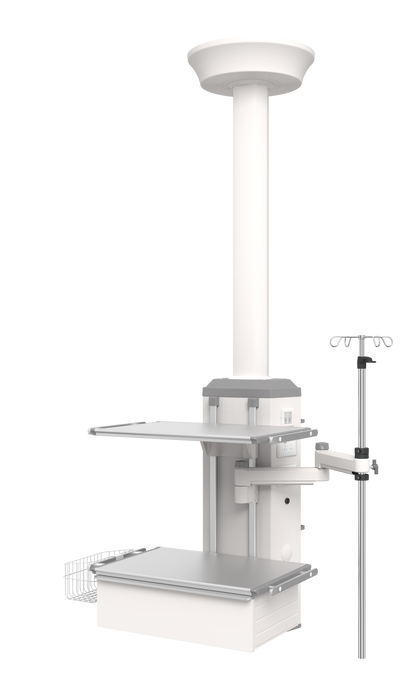

D4 Ceiling Pandents

Cross section of the Cantilever

-          Cantilever design: Patented cantilever design with stable triangle structure maximize the loading capacity

-          Easy to use:  Cantilever closed end is configured with dovetail groove, which makes it easier to install, in addition, with all screws covered inside, you don’t need to worry about screws exposure, more beautiful and appealing.

-          Cantilever aluminum: Using AL6005 high-strength aluminum alloy, with high load carrying capacity. Tensile strength is 285N / mm2，and yield strength is 234N / mm2

-          Cantilever load: Single-arm ceiling pendant’s loading capacity isup to 680KG; Double-arm pendant is 300KG, Passed strict4x loading test (2.72ton)

-          Cantilever Manufacture Technique: The ceiling beam system is configured with use bypass mode, greatly improve load capacity of the cantilever.



Rotational axis

-          Bearing material: Switzerland SKF high strength bearings, with quiet, smooth running and long-term reliability advantages.

-          Bearing design: Rotating joint design. The load capacity of the inclined bearing is higher, and the concentric degree of the rotating shaft is guaranteed.

-          Easy to use: Designed with pneumatic and machinery double brake system, the bearing can be shifted steadily and positioned freely, no drifting in the process.

-          Bearing quality: All rotating joint raw materials shall pass strict durability test before installation. Service life of the bearing-About 10000-250000 hours

-          Service life of the bearing: About 10000-250000 hours Easy to install and maintain of the bearing Coaxial design of the lights, lights can be added on the cantilever



Lift

-          Lift materials: The ceiling pendent is equipped with Switzerland imported SKF lift. Its lifting mechanism can bear heavy load and support long distance working, enabling free and easy movement with direction orientation function in the driving system.

-          Easy to use lift: Wireless control support



Cabinet

-          Aluminum materials: Use AL6063-T5 aluminum, better performance in the surface oxidation and treatment.

-          Cabinet quality: Air source terminal passed 30000 plug durability tests and the circuit passed strict pressure test

-          Convenient installation and maintenance: When there occurs air source failure during the operation, you can fix it after directly take off the terminal without disassembling the cabinet
