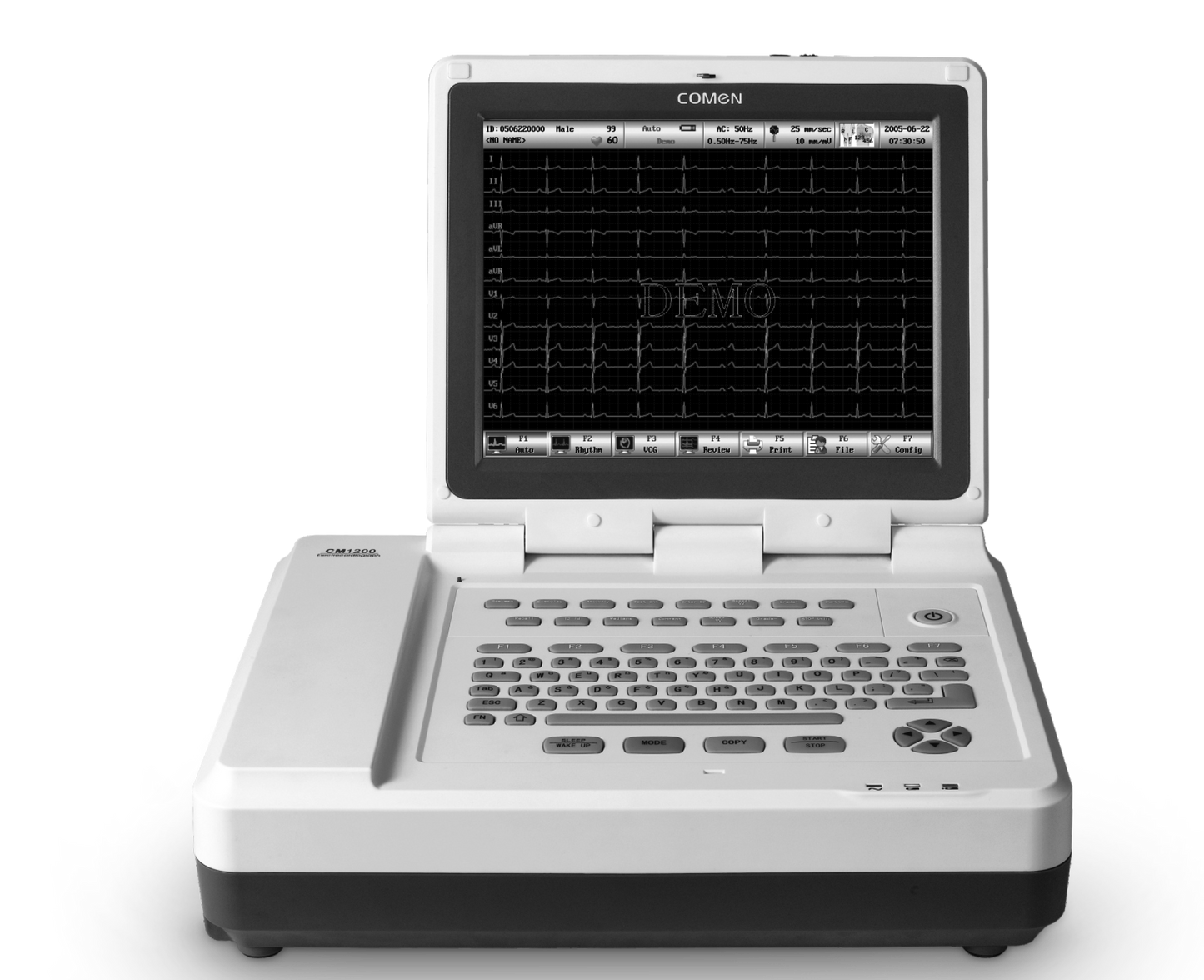

CM1200 Electrocardiograph

Innovative Design, Excellent Performance, Unique Style

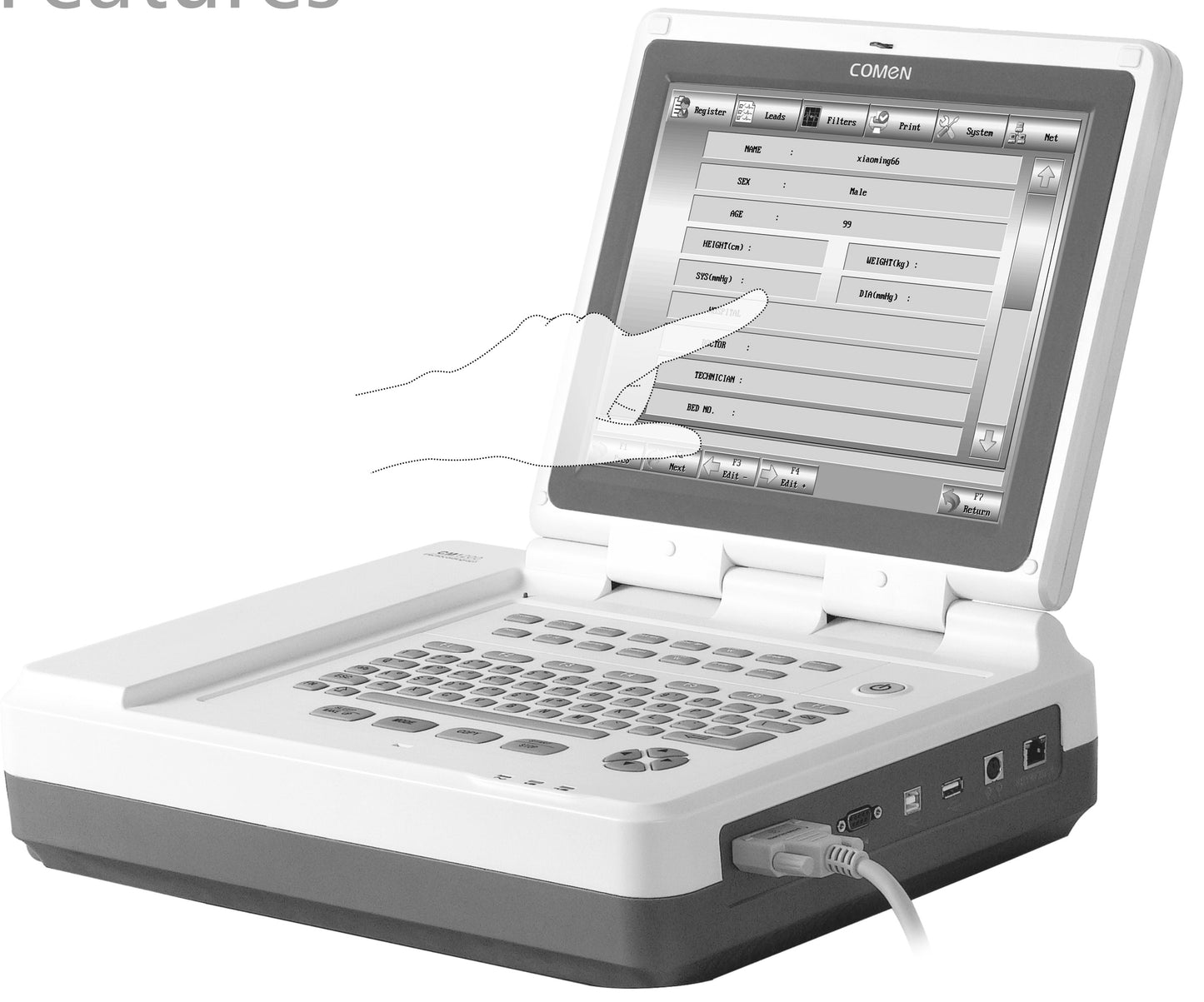

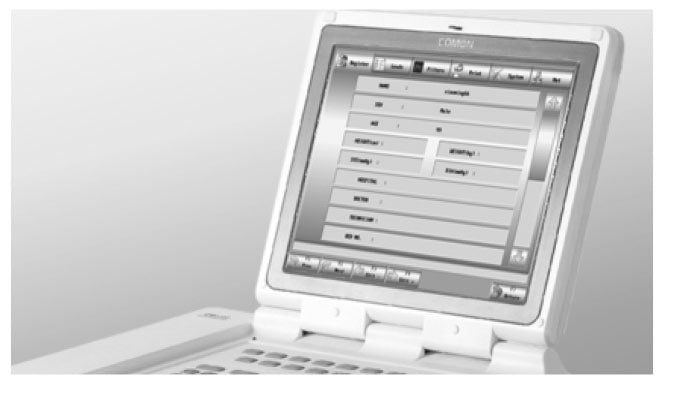

CM1200 folding-up 12.1’’ color LED screen, provides multi-angle observation. Touch screen enables you have easier operation control. CM1200 has multi-language interfaces selection, and multi-size

recording paper selectable. The intellectualized recording calibration system solves the problem of

ECG paper jam, paper deflection completely.

Features:

-          Innovative printing preview and diagnosis result editable

-          Supporting on-screen diagnosis, 1:1 ratio waveforms diagnosis display and print out

-          Interpretation function: 5 different modes, 200 case analysis

-          Supporting latest 120 seconds 12-leads ECG waveforms review and record

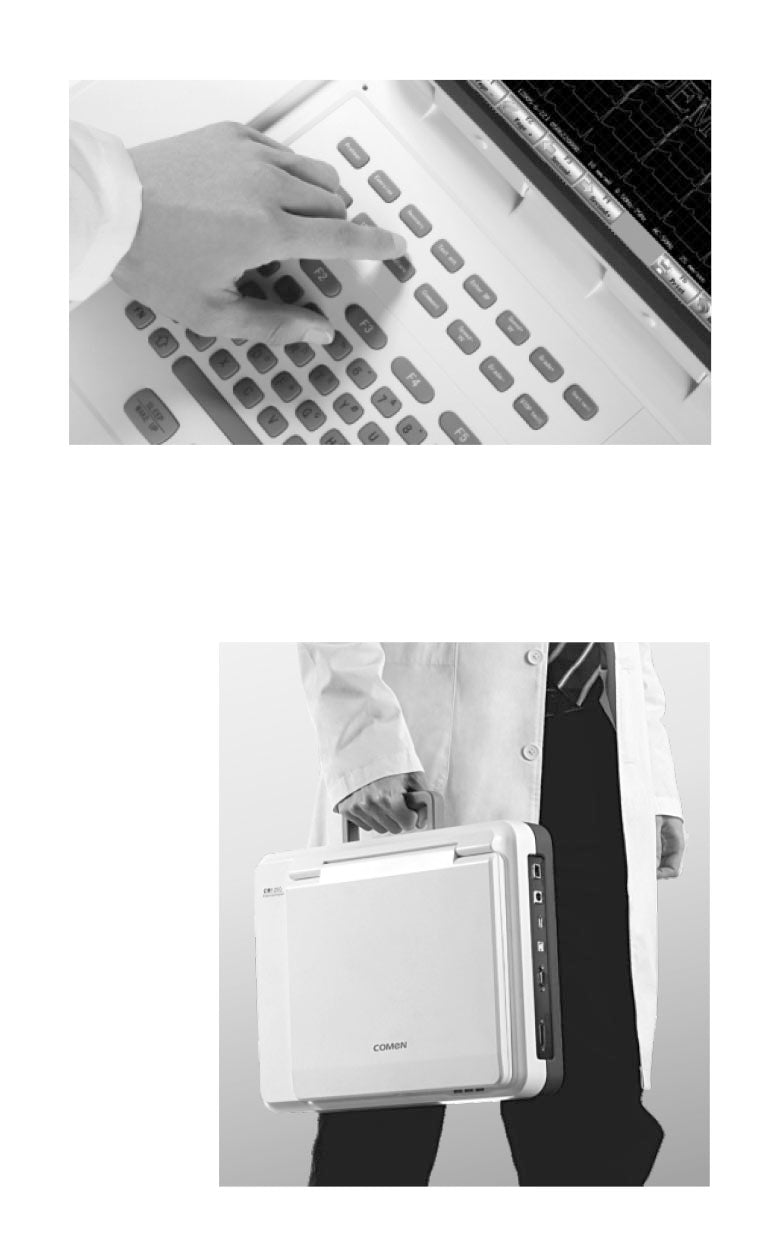

-          Alphanumeric keyboard, individual function button

-          CE standard quality, digital modular design and AI Alloy structure guarantee safety, stability and reliability

-          DC and AC power supply, built-in rechargeable Lithium battery, at least 2 hours working time

-          Sleep mode to save energy and extend screen life

-          Lead status map to show ECG leads conductivity

Printer introduction:

-          Recording Calibration system

-          High quality printing result

-          Various recording paper compatible, 210mm, 216mm width and A4 paper

-          First using Cabrera Leads mode. < 2009 international Electrocardiograph standard and diagnose directory > recommends use this Leads mode, helpful for definition and calculating frontal plane axis of myocardial ischemia and Myocardial infarction, can improve determinant of infarction artery, fatalness evaluation, etc.

-          Various recording format: 12X1, 6X2+1R, 3X4+1R, 3X4+3R

-          Classifying gain: Chest leads and limb leads waveform can setup gain independence

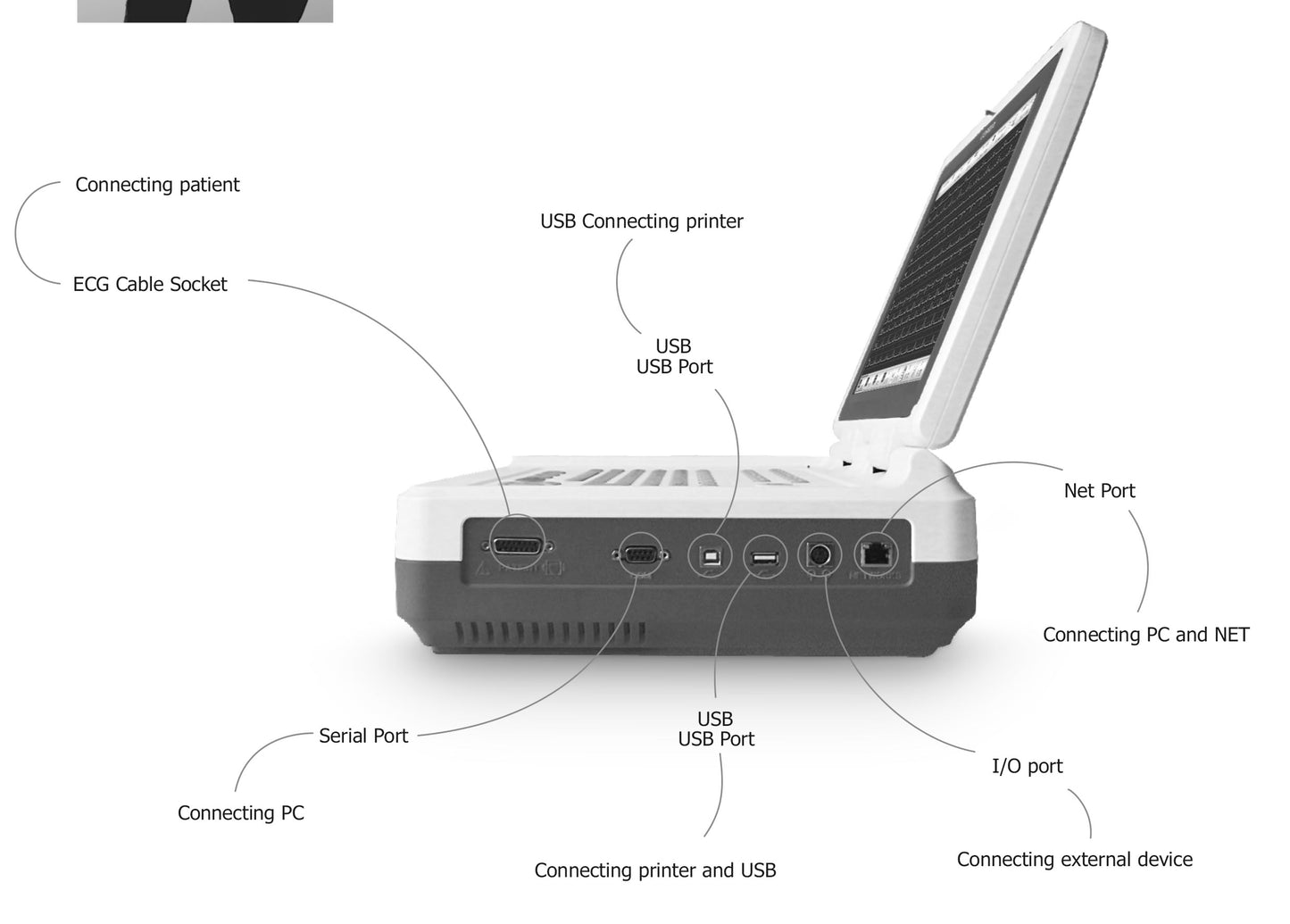

Socket:

-          USB socket to connect external printer. Support A4 paper

-          10000 ECGs internal memory, USB port for data transmission to expand memory
